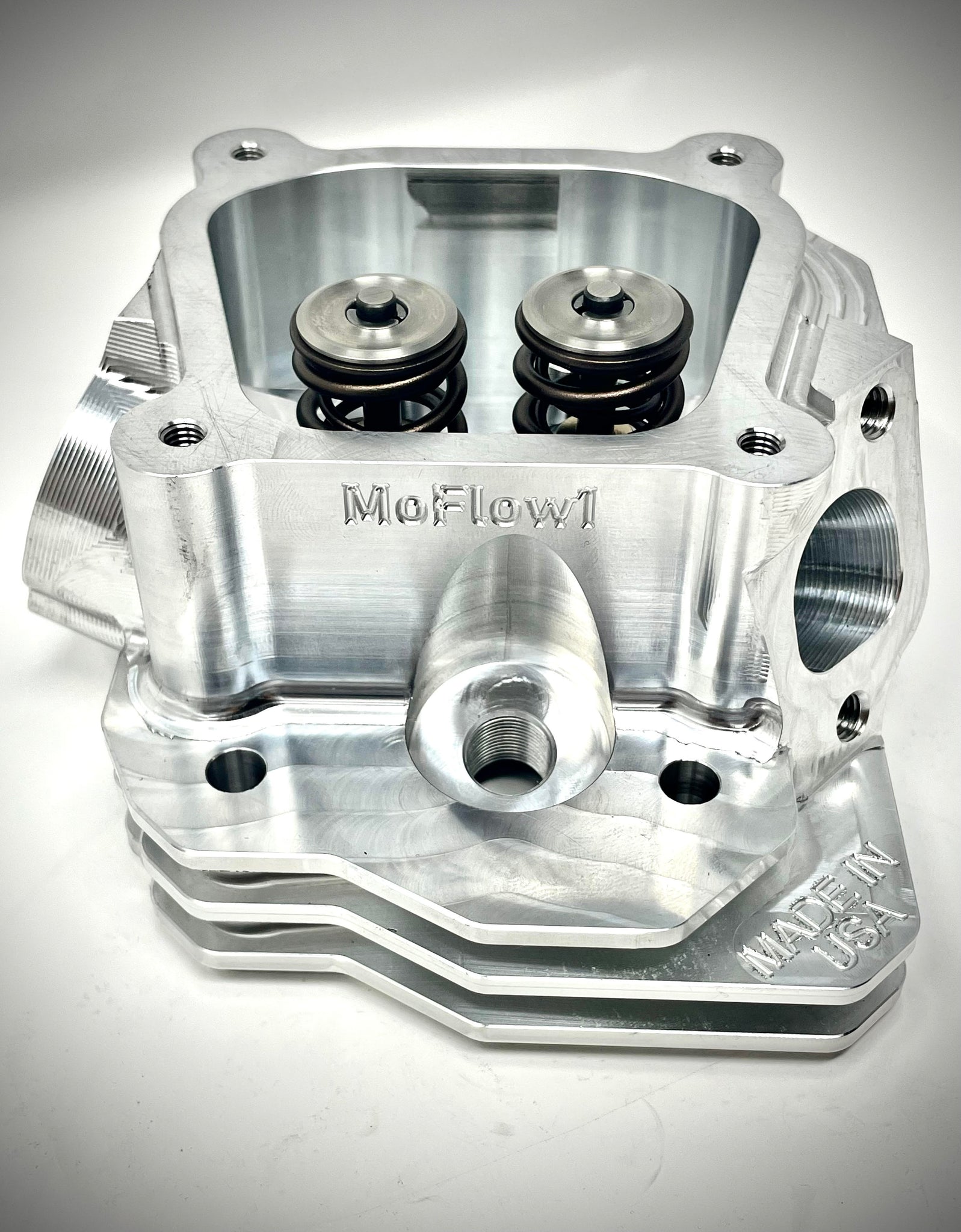

-New- Bigger 36mm x 27mm Valve Moflow Head!!!
The new Moflow has been completely reworked to accept "Bigger" valves. Utilizing 36mm intake valve and a 27mm exhaust. The valve spacing has been widened to safety accommodate the larger valves, along with the rocker stands to keep everything lined up. The intake bolts have been changed from the 43mm spacing to a wider 46mm spacing to allow for the bigger port. Material added on the sparkplug side head bolts to move the bolt pattern if needed for larger bores. Long 3.100" stainless valves with Comp Cams GP965 springs and Titanium retainers. Must use Billet Valve cover or valve cover spacer for clearance. Must use Blackmarkit Intake or modify intake for 46mm spacing. Recommend 1/4" x 5.5" pushrods (length may vary depending on rockers)

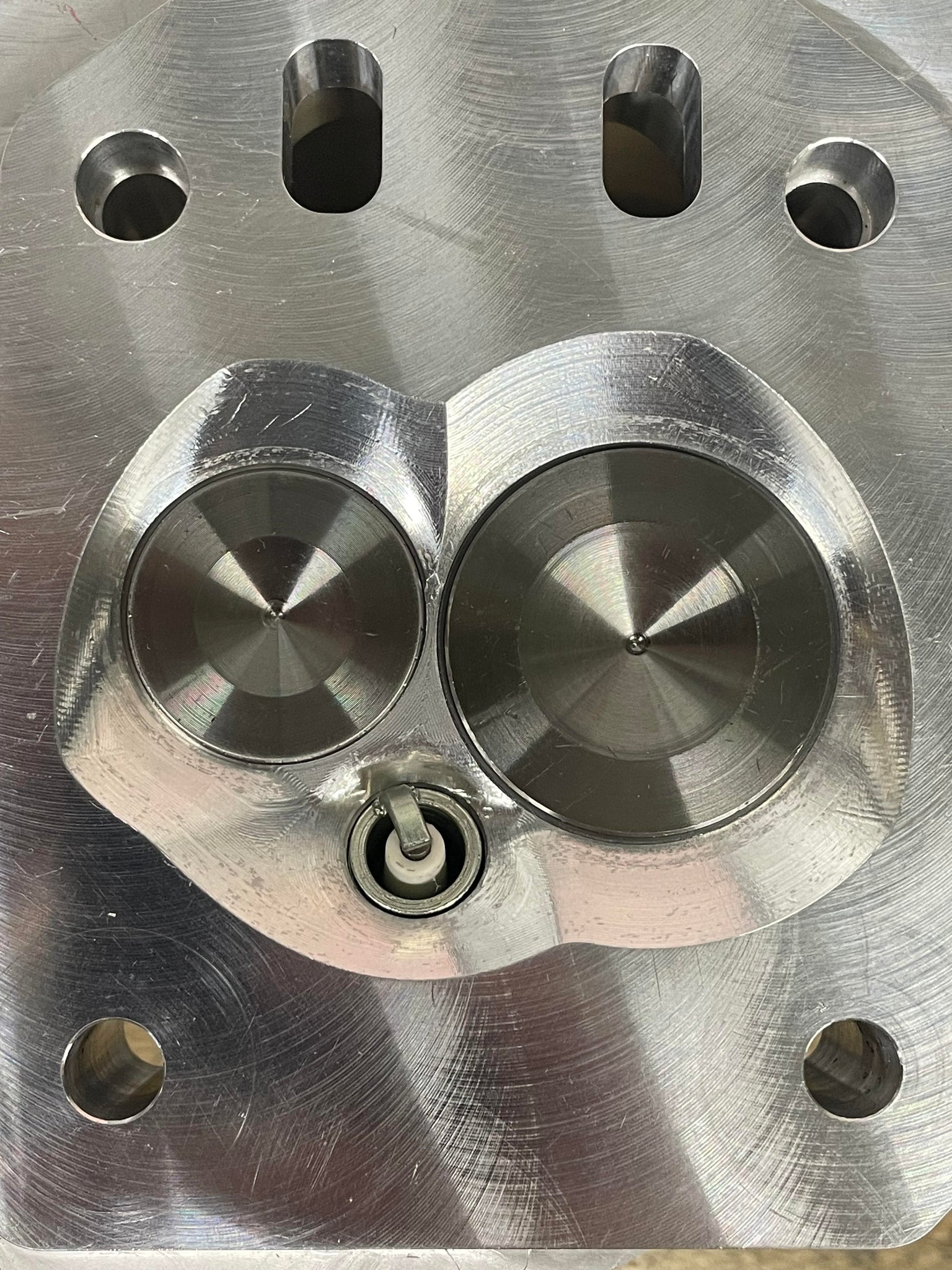

-Designed for 3" bore (2.98" chamber)
-15cc chamber or 23cc chamber (methanol or gas)
-Requires aftermarket valve cover and spacer
-Comp Cams GP966 springs
-Titanium retainers
-Wider valve spacing
-Wider rocker shaft (supplied)
- Wider intake bolt pattern (46mm)

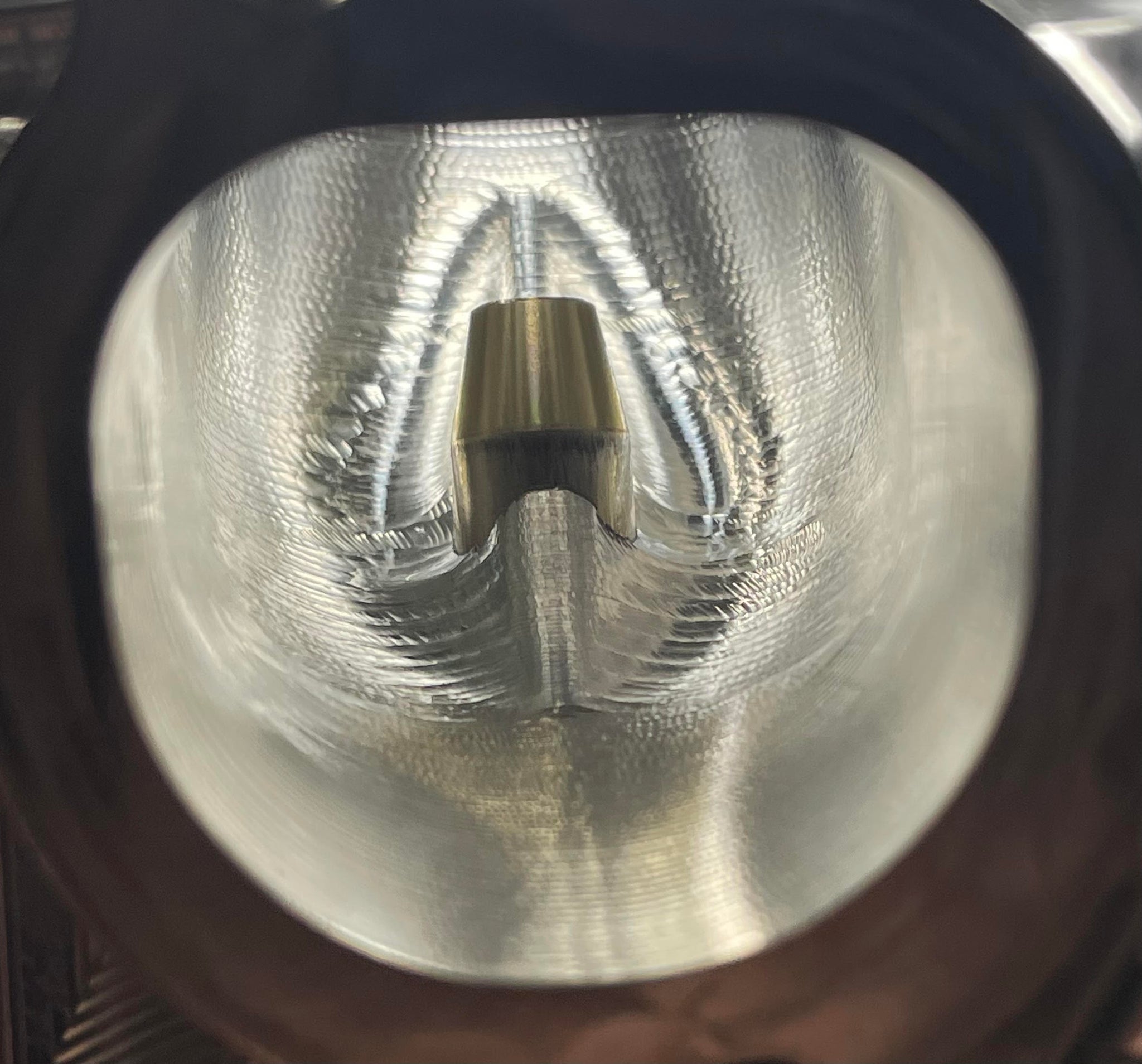

-Improved Intake and Exhaust port Design.
-Extra Material to move head bolts (extreme builds)
Intake Flow at 28"
LIFT CFM
.050 23
.100 44.5
.150 66.5
.200 90.5
.250 108
.300 119
.350 125
.400 127
.450 131
.500 137
Estimated Ship time 1-2 weeks
